FLUSH DOOR IS: 2202

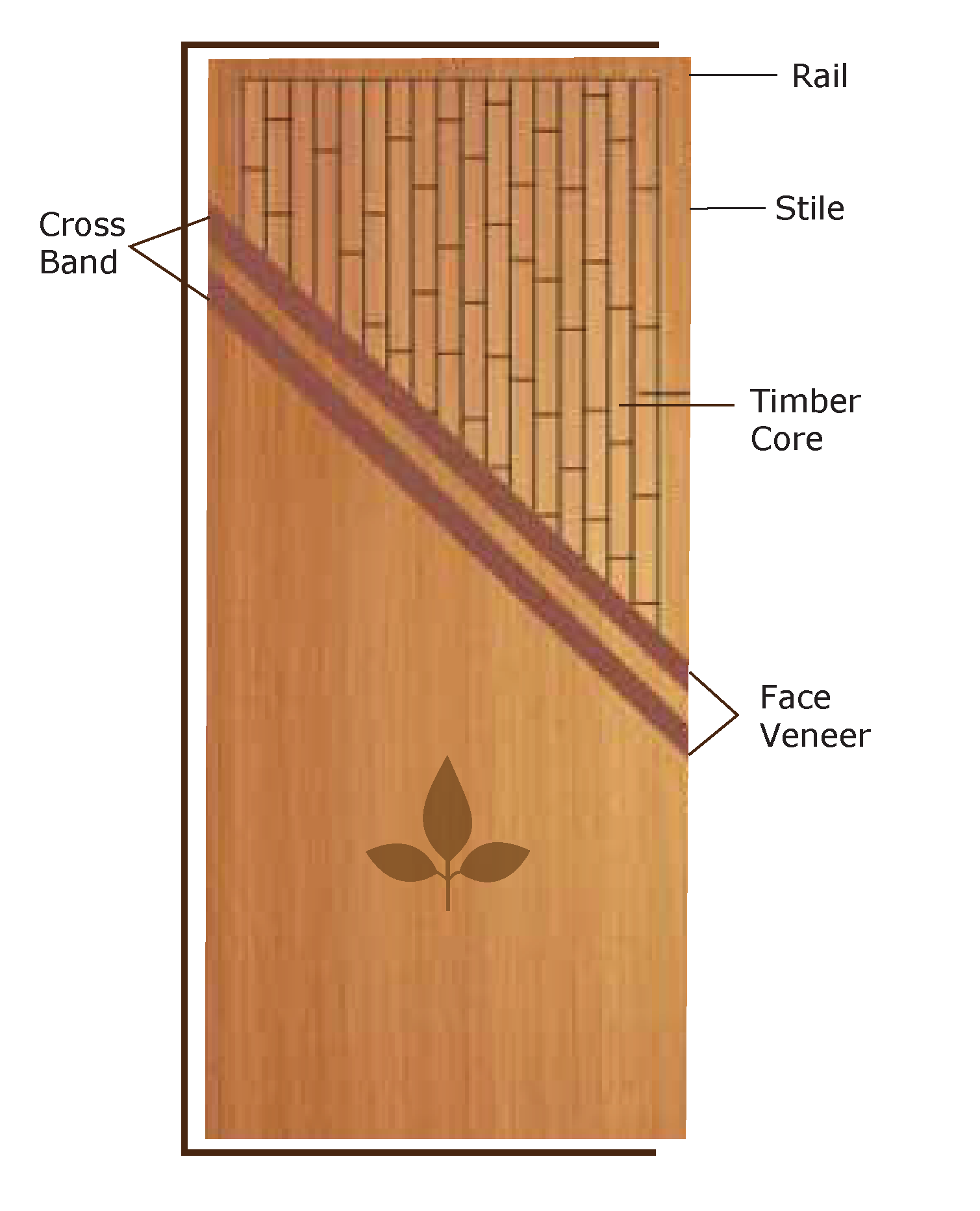

Sablo Flush Doors are modern, elegant and ready to use that can be easily installed with minimum efforts to protect and beautify your dream home. They are made out of high quality wood to make them exceptionally durable and dimensionally stable with excellent tooling and finishing properties. Obviously the doors are made with chemically treated seasoned hardwood battens and frames..

The cross bands veneers are uniformly dried to the requisite moisture content. They are then bonded with special quality Phenol formaldehyde synthetic resin as per the guidelines of IS: 2202. Sablo Flush Doors are manufactured under strict quality control conditions that exceed the ISI specifications. The doors can be manufactured according to customized sizes too.

Sizes and Thicknesses

Standard sizes available. You can choose from the door thickness of 30, 32 and 35mm.

TECHNICAL SPECIFICATION (IS:2202)
TEST ISI REQUIREMENT OBSERVED VALUE
1 Dimension Length, Width- +5 mm Thickness- +1 mm Within limits
2 Squareness Deviation not more than 1 mm On a length of 500 mm Deviation below 1 mm
3 General Flatness Twist cupping, warping not to exceed 6 mm
4 Local Planeness Depth of deviation at any Point to be less than 0.5 mm Within limits
5 Impact Indentation Test Depth of indentation not to Exceed 0.2 mm Within limits
6 Edge Loading Test Deflection of edge with max. To be less than 5 mm Within limits
7 Shock Resistance Test No visible defect after test No visible defects
8 Buckling Test Initial deflection- <50 mm Residual deflection <5 mm Within limits
9 Slamming Test No visible damage after test No visible damage
10 Misuse Test No deformation after test No deformation
11 Varying Humidity Test No visible warping twisting Or de-lamination No such defects Observed
12 End Immersion Test No de-lamination at the end No de-lamination
13 Knife Test Minimum Pass Standard Excellent
14 Glue Adhesion Test No de-lamination No de-lamination
15 Screw Withdraw Test Load to withdraw screw

To be more than 1000 N

 Load- >1000 N
